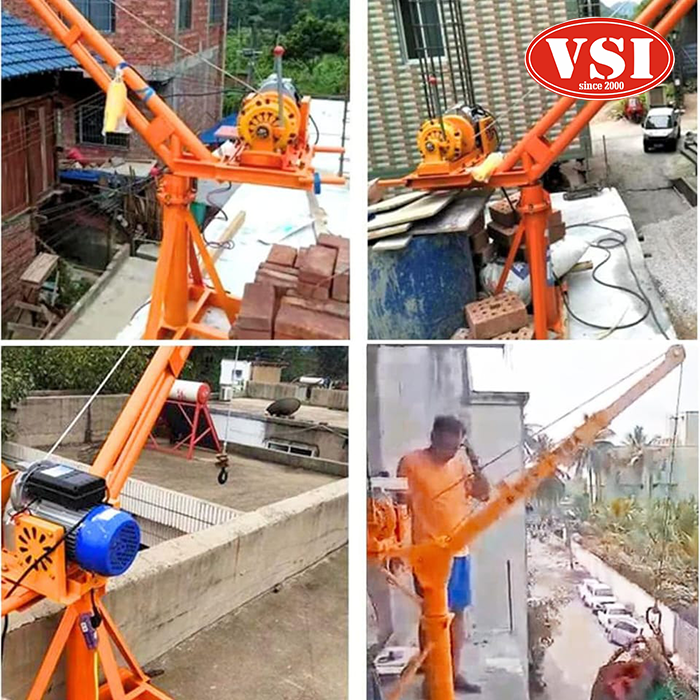

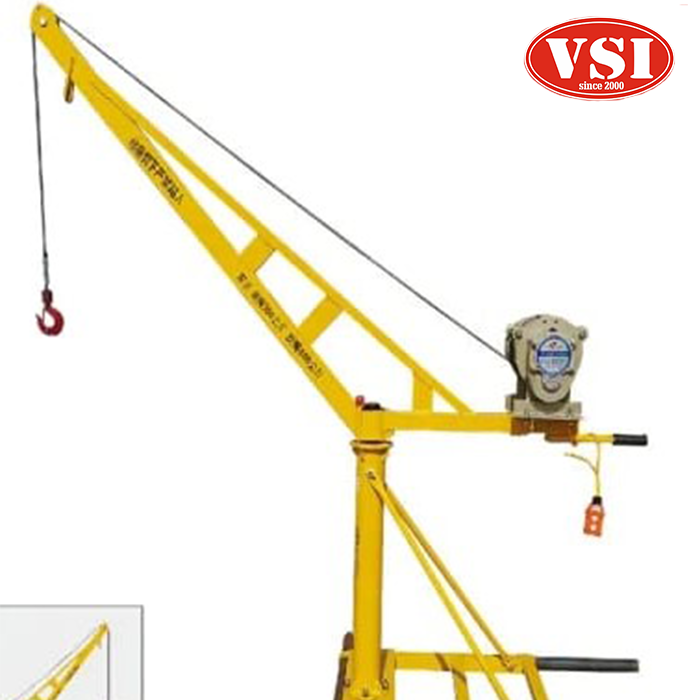

BUILDERS HOIST -1/2 TON CAPACITY

• MODEL VS H 500KG
• BRAND VSI
• CAPACITY 1/2 TON
• POWER 10HP AIR COOLED DIESEL ENGINE /7.5HP ELECTRIC MOTOR
• CHASIS HEAVY DUTY ROBUST STEEL CHASSIS

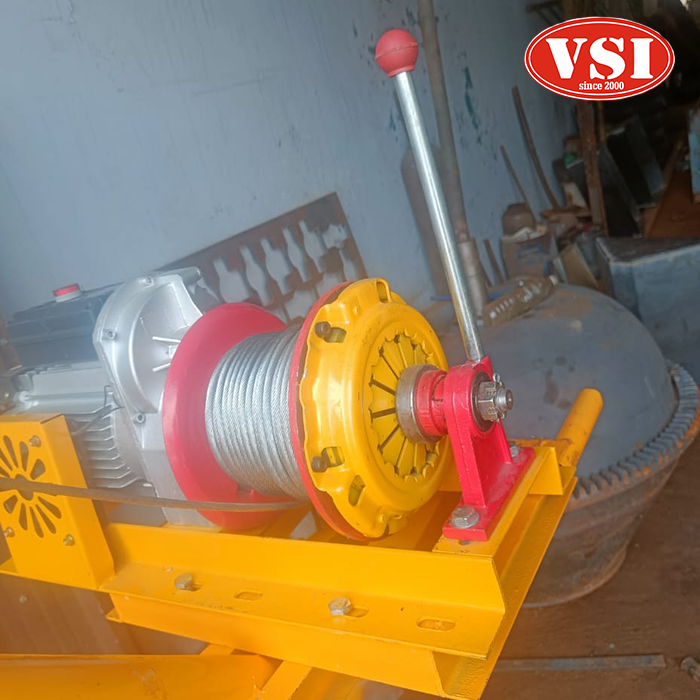

• WIREROPE 12MM FIBRE CORE USHA MARTIN TESTED WIRE ROPE
• BEARINGS SKF/ FAG MAKE
• SPEED 25MTR / PER MIN
• MASTER FRAME ANGLE SIZE - 65X65X6MM
• WHEELS CASTING WHEELS 4NOS
• UNIT WEIGHT 725 KGS
• MASTER FRAME 105KGS
• MOVING PLATFORM 125KGS
• WEIGHT 1850KGS /30MTR (APPROX)
